Digital Rebar Pull-Out Force Tester with Steel Hydrolic Cylinder, 30 tons Capacity
Overview
+Description

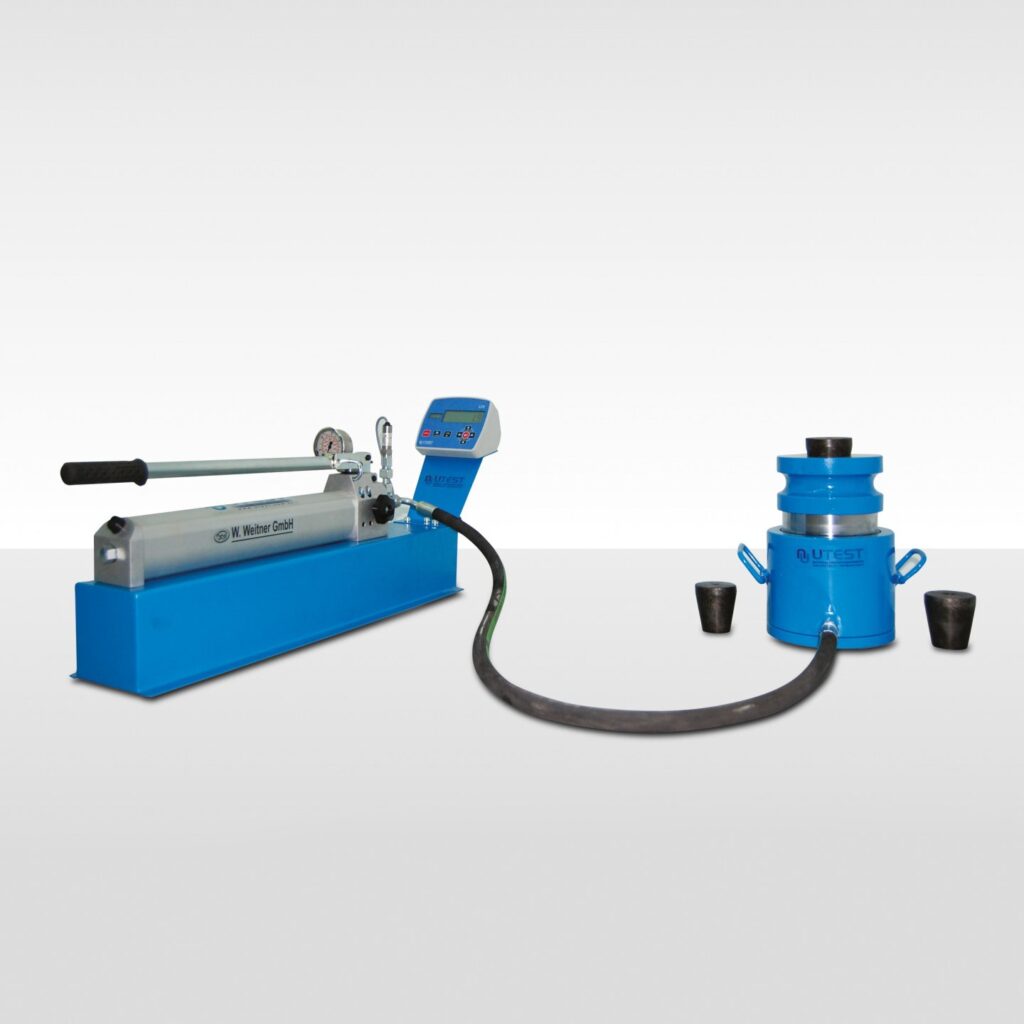

The Apparatus are used for determining the bond strength between anchored reinforcing steel bar (rebar) and concrete and for checking anchorage performance in-situ. LPI Battary Operated Digital Readout Unit connected to a 30 tons capacity hydraulic jack and hand pump provides 1 % sensitive load or tensional strength value readings.
UTC-3190 and UTC-3210 Digital Rebar Pull-Out Force Testers have a steel hydraulic cylinder.
The apparatus are supplied complete with two different jaw sets which allows user to test anchorage rebar with different diameters. These jaws are made of high strength steel.
UTC-3190 is supplied complete with two jaw face sets for 4-8mm, and 8-14mm dia. rebars.
UTC-3210 is supplied complete with two jaw face sets for 8-14mm and 14-28mm dia. rebars. The Jaw Faces Set (UTC-3191) 4-8mm dia. for UTC-3210 should be ordered separately.
| UTC-3190 | UTC-3210 | |
|---|---|---|
| Working ability | 10 tons | 30 tons |
| Rebar diameters can be tested | Up to 14 mm | Up to 28
(Max. 500 MPa for Ø28mm) |
| Tension journey (stroke) | 50 mm | 50 mm |
| Dimensions | 300x1050x300 mm | 300x1050x300 mm |
| Weight (approx.) | 30 kg | 35 kg |
